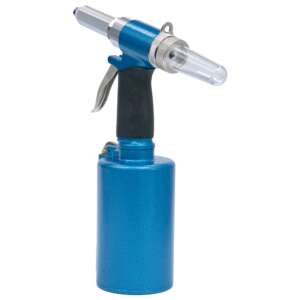

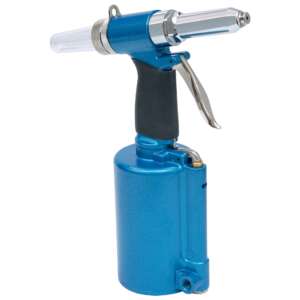

This powerful air hydraulic riveter is fast and rugged enough for production work. The air riveter’s nosepieces are constructed of chrome plated steel for maximum durability. Features include a safety cap to collect spent rivet pins and an air relief valve to prevent overloading.
⚙️ Specification
|
Rivet Capacity
|
2.4 ~ 6.4 mm (Steel) / 3/32″ ~ 1/4″ |
|
Traction Power
|
1,894 Kgs (4,166 lbs) |
|
Stroke Length
|
19 mm |
|
Nose Pieces
|
2.4, 3.2, 4.0, 4.8, 6.4 mm |
|
Avg. Air Cons.
|
4.2 CFM (148 l/min) |
|
Air Pressure
|
80 ~ 100 PSI |
|
Net Weight
|
2.0 Kgs (4.3 lbs) |
|
Overall Length
|
L280 × H330 × D102 mm |
|
Air Inlet
|
1/4″ |
|
Air Hose I.D.
|
3/8″ (10 mm) |
|
Packing
|
6pcs/ctn/2.03cu-ft/GW:17kg |
|
Acceptable rivet material
|
aluminum/steel/stainless |
