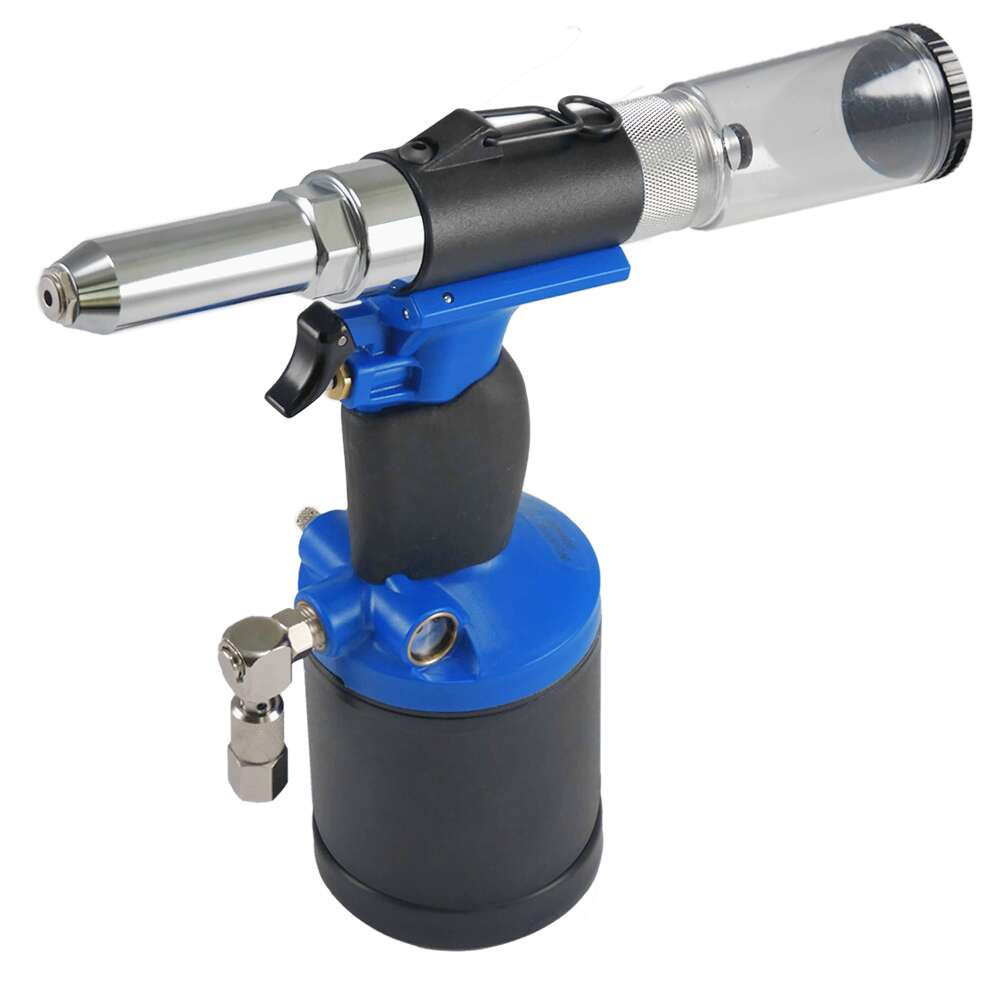

Adjustable suction control switch, vacuum system with an integrated design. The housing is made of lightweight high-strength aluminum material. It’s durable and suitable for a variety of hard working condition. Robust tool High , Placement high speed minimized air consumption. Set 3/16″and 3/32″ structural Mono-bolt rivets,”T” rivets and standard rivets-in all materials. Lightweight and Durable ergonomically designed, easy maintenance with replaceable spare parts. Brand-new technology, have low recoil of shock-less, can reduce part of tools wear, and the can reduce operator is tired.
⚙️ Specification
|
Rivet Capacity
|
2.4 ~ 4.8 mm (Steel) / 3/32″ ~ 3/16″ |
|
Traction Power
|
953 kgs (2,100 lbs) |
|
Stroke Length
|
23.5 mm (0.925″) |
|
Nose Pieces
|
4.8, 4.0, 3.2, 2.4 mm |
|
Avg. Air Cons.
|
4 CFM (113.3 l/min) |
|
Air Pressure
|
85 ~ 95 PSI (6 ~ 6.7 kg/cm²) |
|
Net Weight
|
1.55 Kgs (3.42 lbs) |
|
Overall Length
|
L290 × H270 × D96.5 mm |
|
Air Inlet
|
1/4″ |
|
Air Hose I.D.
|
1/4″ (6.5 mm) |
