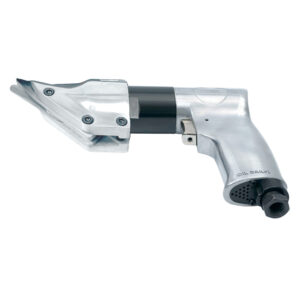

- Air Shears are ideal for the trimming, outlining and shearing of various sheet.
- The heavy-duty cutting blades make clean cut in cold rolled steel up to 18 gauge steel.
- Planetary gearing for long life and heavy duty use.
- Bottom handle diffused exhaust for quiet operation and keeps air away from the work surface.
- The shears are ideal for body shop, sheet metal shop, and machine shop.
⚙️ Specification
|
Cutting Capacity
|
1.2 mm (Steel), 1.4 mm (Alum) |
|
Free Speed
|
2,100 RPM |
|
Avg. Air Cons.
|
10 CFM (283 l/min) |
|
Air Pressure
|
90 PSI (6.2 bar) |
|
Net Weight
|
1.25 Kgs (2.76 lbs) |
|
Overall Length
|
225 mm (8.86″) |
|
Air Inlet
|
1/4″ |
|
Air Hose I.D.
|
3/8″ |
|
Sound Pressure
|
85 dB(A) |
|
Vibration Level
|
4.0 m/s² |
|
Packing
|
10pcs/ctn/0.98cu-ft/GW:15kg |
