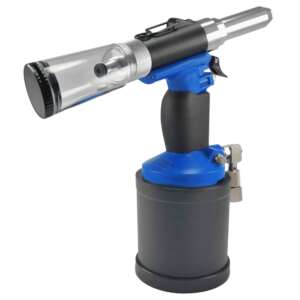

Strengthen clamping jaws use of high-strength alloy steel, which well improved the lifetime. Heavy-duty design and long service life, high quality parts special treatment. Adjustable suction control switch, can “on/off” Intake port, minimizes air consumption. Vacuum system with an integrated design , no internal problem of aging pipelines. Rubber padded, hand friendly tool grip, outstanding weight distribution, low vibration and noise damping, low triggering force. Mandrel container equipped with safety device and adjustable airflow deflection. Modular design for the complete tool series, lightweight and Durable ergonomically designed. Brand-new technology, have low recoil of shock-less, can reduce part of tools wear, and the can reduce operator is tired.
⚙️ 사양
|
Rivet Capacity
|
4.8 ~ 7.8 mm (Steel) / 3/16″ ~ 5/16″ |
|
Traction Power
|
1,723 Kgs (3,800 lbs) |
|
Stroke Length
|
22.5 mm (0.88″) |
|
Nose Pieces
|
4.8, 5.6, 6.4, 7.8 mm |
|
평균 에어콘.
|
4 CFM (113.3 l/min) |
|
기압
|
85 ~ 95 PSI (6 ~ 6.7 kg/cm²) |
|
순중량
|
1.88 Kgs (4.15 lbs) |
|
전체적인 길이
|
L305 × H310 × D109 mm |
|
공기 유입구
|
1/4″ |
|
에어 호스 ID
|
1/4″(6.5mm) |
