NS-515 Designed to provide strong threads in thin panel sections, applied for automobiles, trucks and trailers, electronics, marine / boating, furniture, etc.
Suitable for rivet nuts M3 ~ M10 in all materials It is quick, easy and less thread deformation to spin on, pull up and spin off the fasteners. Compact, powerful and durable design.
⚙️ spécification
|
Rivet Capacity
|
M3 ~ M10 |
|
Traction Power
|
2,140 Kgs (4,280 lbs) |
|
Stroke Length
|
6.5 mm |
|
Moy. Air cons.
|
0.3 CFM (7.5 l/min) |
|
Pression de l'air
|
70 ~ 100 PSI |
|
Poids net
|
2.5 Kgs (5.5 lbs) |
|
Longueur totale
|
310 mm (12.2″) |
|
Entrée d'air
|
1/4″ |
|
Bruit sonore
|
80 dB(A) |
|
Niveau de vibration
|
<2,5 m/s² |

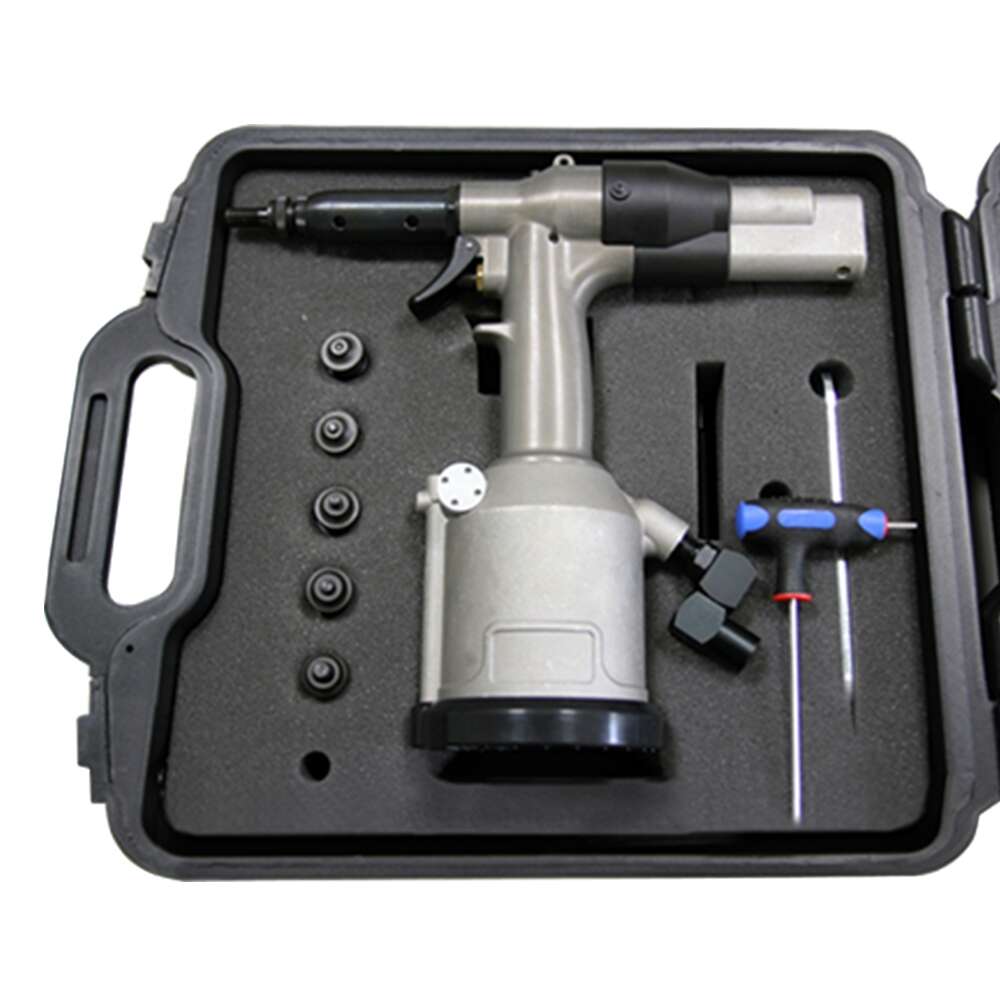

⚙️ Contenu
- 1 × NS-515 Air Hydraulic Spin Pull Tool
- 6 × Tie Rod Kits (M3, M4, M5, M6, M8 & M10)
- 6 × Tie Rods (M3, M4, M5, M6, M8 & M10)
- 1 × Pin for Stroke Adjustment
- 1 × Hex. Wrench
- 1 × Spanner
- 1 × Blow Mould Case
