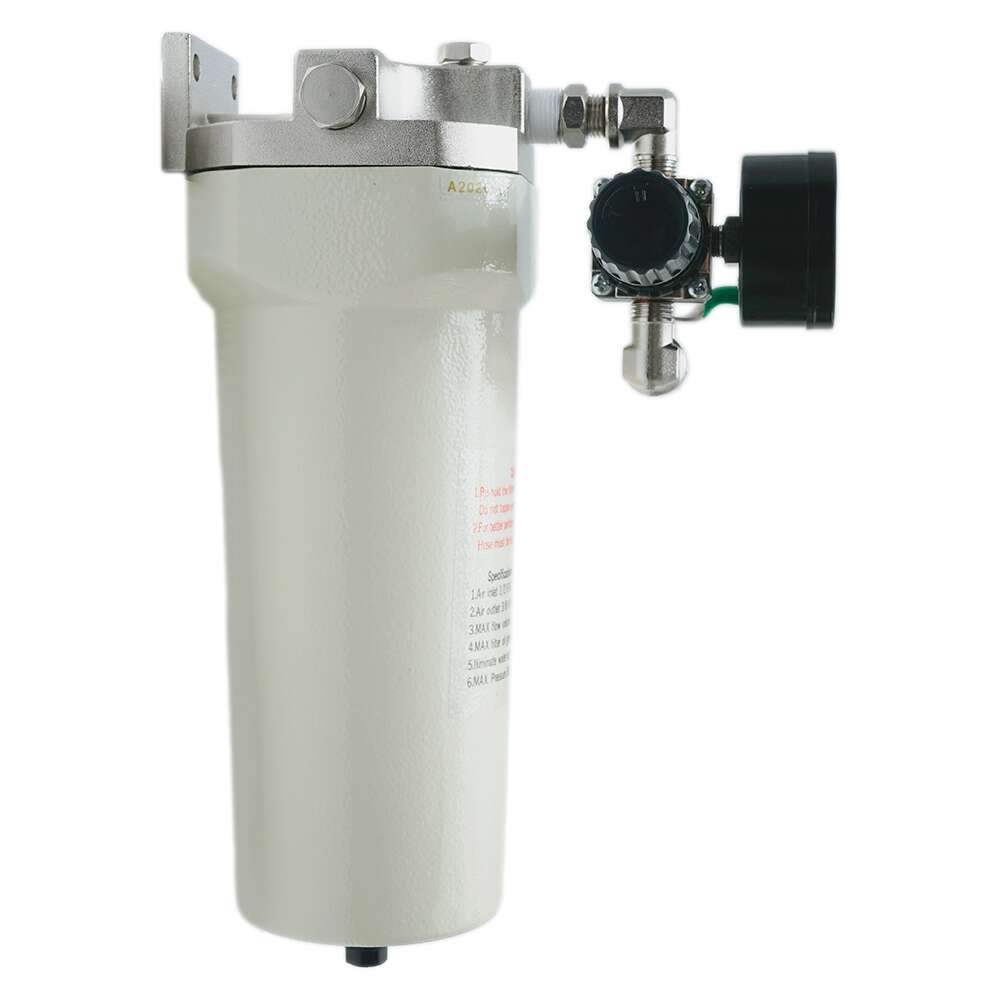

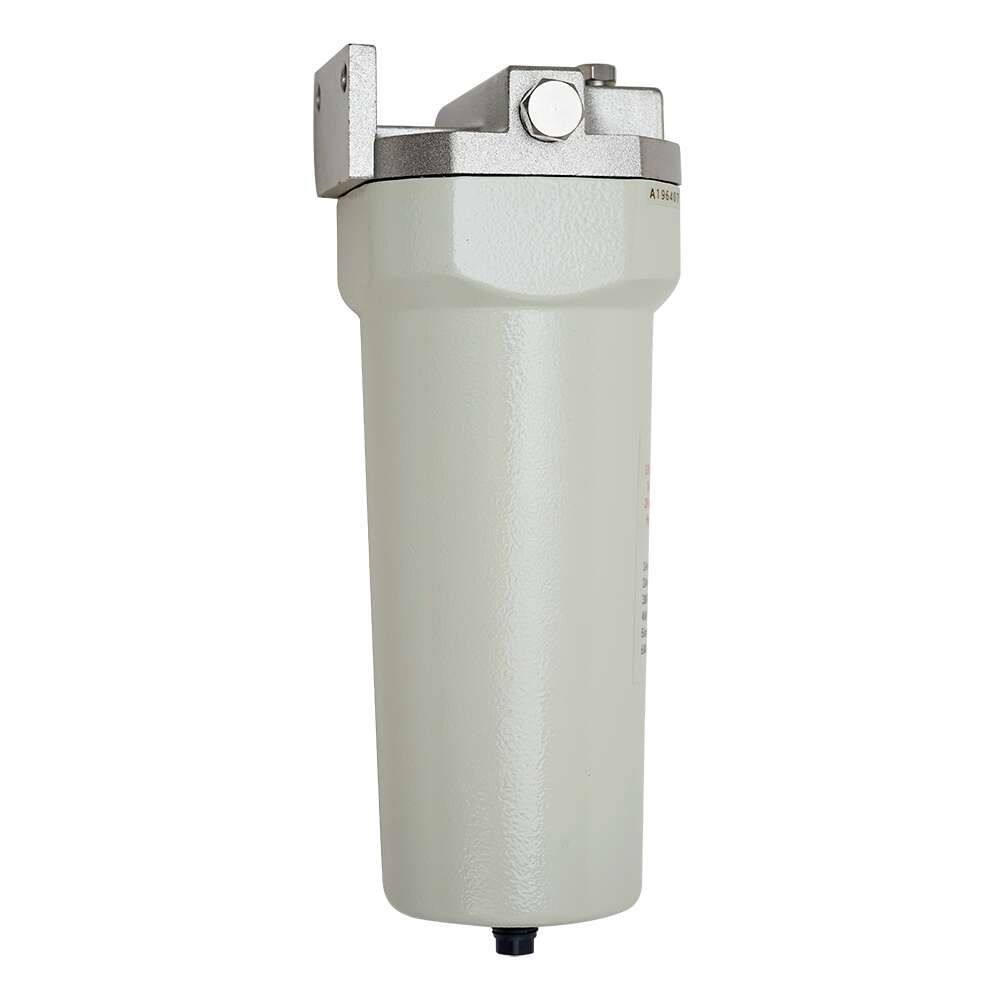

The Type AF-168BA Filter unit is a 5-micron filtration depth filter that removes dirt, moisture and other particles from air and gas lines. This unit stands up in corrosive operating conditions. This filter is an economical alternative for air supply line applications that don’t require a pressure reducing regulator. Manual and automatic drain. Optional 5-micron filter.
⚙ Especificación
|
Entrada de aire
|
1/2″ |
|
Air Outlet
|
3/8″ |
|
Max. Flow Valume
|
120 CFM (3,396 l/min) |
|
Max. Filter Oil Grade
|
5 Micron Filtration |
|
Eliminate Water Up to
|
99% |
|
Max. Pressure
|
300 PSI |
|
Outer Diameter
|
L185 x W110 x H290 mm |
|
Peso neto
|
2.3 kgs |
Caution
- Pis hold the filter on the right position. Do not topple even after using.
- For better performance of filter the Air hose must be more than 9M.
